M190
The M190 rotary indexing table is designed for lightweight applications that do not require carrying heavy loads. It’s compact, making it easy to install with just four screws. It can be mounted horizontally, vertically, or inverted. It’s perfect for applications such as:

  • drilling machines
  • riveters
  • presses
  • bottle fillers
  • special machines

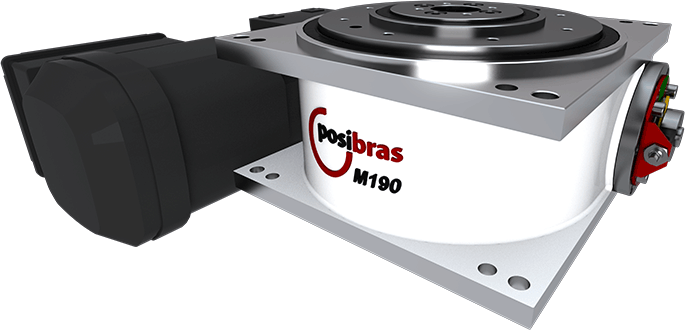

M190 Rotary index table

M190 technical features
Turntable Diameter: 190 mm7.48 in
Center Opening Diameter: 35 mm1.378 in (hole through)
Rotation Direction: Clockwise, counter-clockwise and also in reversing mode
Number of Indexes: Indexed cam: 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 18, 20, 21, 22, 24, 26, 27, 28, 30, 32, 33, 36 (more options available upon request), or Continuous cam
Motor Voltage: 220 V / 380 V / 440 V
Motor Frequency: 50 Hz / 60 Hz
Motor Power: 0.11 to 0.55 KW
Weight without Gearmotor: approximately 18 Kgapproximately 39 lbs
Weight with Gearmotor: 23approximately 23 Kgapproximately 51 lbs (varies based on the gearmotor installed)
Indexing Accuracy: ±0.018 mm at 50 mm center radius±0.00071 in at 2 in center radius
Repeatability Accuracy: ±0.009 mm at 50 mm center radius±0.00035 in at 2 in center radius
Inductive Sensor: PNP NA (from 10V to 36 V)

M190 permissible loads

To determine which model will be used in your project, in addition to the loads below, it is also necessary to know the moment of inertia of the set that will be moved, the time in seconds for positioning, and the number of stations (stops). Example: Moment of inertia 12Kg.m2lbs.ft2, speed 1.5 seconds, 12 stations.
Click on the Quote menu or contact us for help identifying this data.
Load Description Values

Axial Load A- Maximum Axial Load (*): Represents the total weight evenly distributed on the turntable. The maximum load refers to the forces on the turntable. This doesn’t imply that the indexing table will rotate this mass. The ability to rotate depends on three factors:

  • angular distance covered (or number of stations)
  • angular velocity/acceleration
  • moment of total inertia (mass and distance of the mass from the turntable’s center)
 1000 Kg2204 lbs
Radial Load B- Maximum Radial Load: Represents forces perpendicular to the turntable’s center, usually exerted by external actuators aligned to the center of the turntable. 1000 Kg2204 lbs
Vertical Torque C- Maximum Vertical Torque: Represents the imbalance of weights on the turntable or its twisting. This is usually caused by external actuators that exert axial force on only one side of the turntable. 1000 Nm737 ft.lbs
Horizontal Torque D- Maximum Horizontal Torque: Represents external forces in the rotation direction of the indexing table, either forcing the turntable to rotate or brake. 238 to 500 Nm175 to 368 ft.lbs

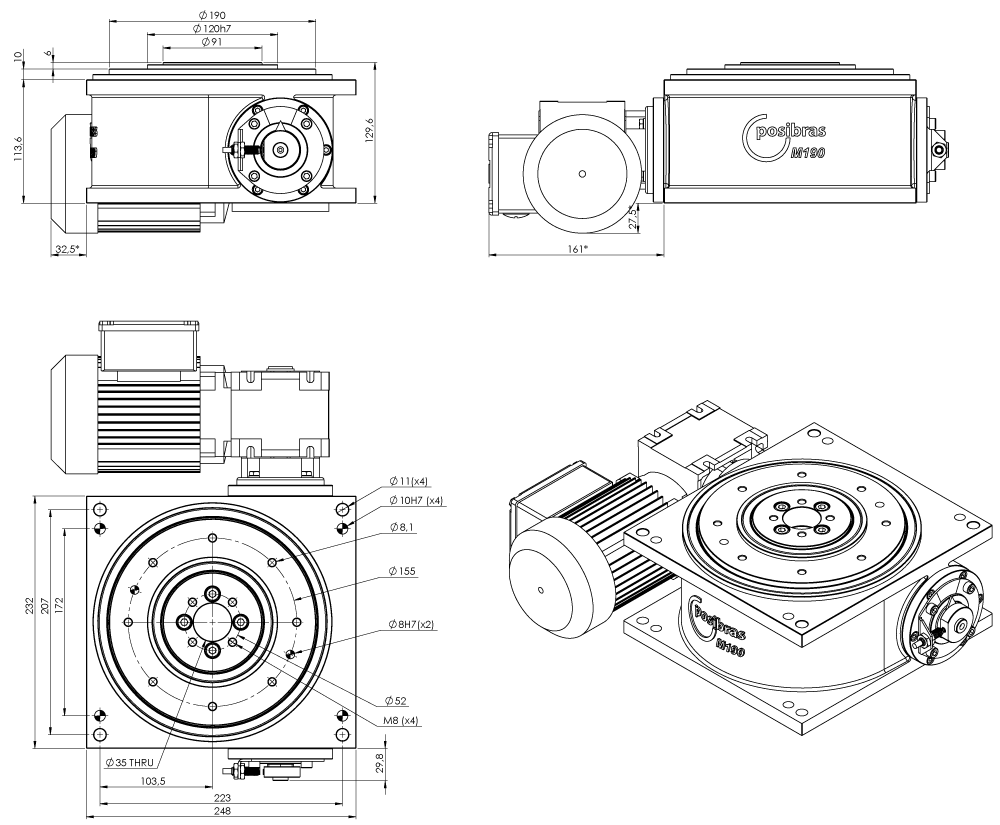

M190 main dimensions

M190 main dimension in milimetersM190 main dimension in inches
M190 main dimensions
in millimetersinches

(*) – measurements can vary depending on the geramotor attached to the indexing table

M190 geramotor assembly position

Gearmotor assembly position

Download the instruction manual – click on the icon below

Instructions manual

Download CAD 3D part

Assembly position Gearmotor model Click to download
D1 SEW_WA20DRN63M4 STEP Parasolid x_t Parasolid x_b VRML
D1 SEW_WA20DRN71MS4BE05HR2W STEP Parasolid x_t Parasolid x_b VRML
D1 SEW_WA20DRS71S4BE05 STEP Parasolid x_t Parasolid x_b VRML
D2 SEW_WA20DRS71S4BE05 STEP Parasolid x_t Parasolid x_b VRML
D3 SEW_WA20DRS71S4BE05 STEP Parasolid x_t Parasolid x_b VRML
D1 SEW_WA20DRS71S4 STEP Parasolid x_t Parasolid x_b VRML
D2 SEW_WA20DRS71S4 STEP Parasolid x_t Parasolid x_b VRML
D3 SEW_WA20DRS71S4 STEP Parasolid x_t Parasolid x_b VRML
E1 SEW_WA20DRS71S4 STEP Parasolid x_t Parasolid x_b VRML
E2 SEW_WA20DRS71S4 STEP Parasolid x_t Parasolid x_b VRML
E3 SEW_WA20DRS71S4 STEP Parasolid x_t Parasolid x_b VRML
D SEW_WA20_D STEP Parasolid x_t Parasolid x_b VRML
E SEW_WA20_E STEP Parasolid x_t Parasolid x_b VRML
D1 SEW_WA30DRS71S4 STEP Parasolid x_t Parasolid x_b VRML
D2 SEW_WA30DRS71S4 STEP Parasolid x_t Parasolid x_b VRML
D3 SEW_WA30DRS71S4 STEP Parasolid x_t Parasolid x_b VRML
E1 SEW_WA30DRS71S4 STEP Parasolid x_t Parasolid x_b VRML
E2 SEW_WA30DRS71S4 STEP Parasolid x_t Parasolid x_b VRML
E3 SEW_WA30DRS71S4 STEP Parasolid x_t Parasolid x_b VRML
D SEW_WA30_D STEP Parasolid x_t Parasolid x_b VRML
E SEW_WA30_E STEP Parasolid x_t Parasolid x_b VRML
D1 SEW_WAF10DR2S56M4 STEP Parasolid x_t Parasolid x_b VRML
D2 SEW_WAF10DR2S56M4 STEP Parasolid x_t Parasolid x_b VRML
D3 SEW_WAF10DR2S56M4 STEP Parasolid x_t Parasolid x_b VRML
E1 SEW_WAF10DR2S56M4 STEP Parasolid x_t Parasolid x_b VRML
E2 SEW_WAF10DR2S56M4 STEP Parasolid x_t Parasolid x_b VRML
E3 SEW_WAF10DR2S56M4 STEP Parasolid x_t Parasolid x_b VRML
D1 SEW_WAF10DT56L4 STEP Parasolid x_t Parasolid x_b VRML
D2 SEW_WAF10DT56L4 STEP Parasolid x_t Parasolid x_b VRML
D3 SEW_WAF10DT56L4 STEP Parasolid x_t Parasolid x_b VRML
E1 SEW_WAF10DT56L4 STEP Parasolid x_t Parasolid x_b VRML
E2 SEW_WAF10DT56L4 STEP Parasolid x_t Parasolid x_b VRML
E3 SEW_WAF10DT56L4 STEP Parasolid x_t Parasolid x_b VRML
D SEW_WAF10_D STEP Parasolid x_t Parasolid x_b VRML
E SEW_WAF10_E STEP Parasolid x_t Parasolid x_b VRML
71_D1 WEG_L04 STEP Parasolid x_t Parasolid x_b VRML

For the use of other geramotor, or different gearmotor positioning
or even special projects (example shaft with special length, using pulley instead
of motor, etc),please contact Posibras to generate this new solid.Posibras reserves the right to change product features at any time.
Please contact to confirm technical specifications.
