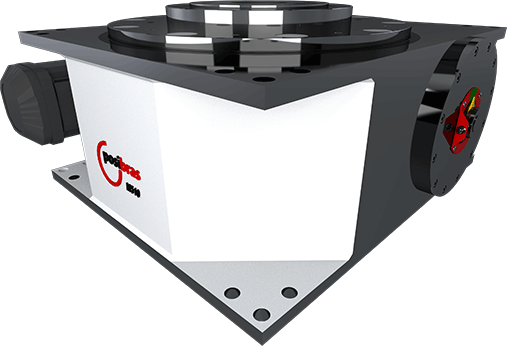

The Rotary Indexing Table model M510 is suitable for heavy load applications. Sturdy, it can be easily installed by securing with 8 screws at its base. It can be installed horizontally, vertically, or inverted (upside down). Ideal for applications such as:
approx. 520 Kg (varies according to the applied gearmotor)approx. 1140 lbs (varies according to the applied gearmotor)
±0.011 mm at a center radius of 50 mm±0.00043 in at a center radius of 2 in
±0.005mm at a center radius of 50 mm±0.00020 in at a center radius of 2 in
PNP NA (10 V to 36 V)
M510 permissible loads
To determine which model will be used in your project, in addition to the loads below, it is also necessary to know the moment of inertia of the set that will be moved, the time in seconds for positioning, and the number of stations (stops). Example: Moment of inertia 12Kg.m2lbs.ft2, speed 1.5 seconds, 12 stations.
Click on the Quote menu or contact us for help identifying this data.
A- Maximum axial load (*): Represents the total mass distributed evenly on the rotating plate (or total weight)(*) – the total maximum load refers to the forces on the rotating plate. This does not mean that the indexing table will be able to rotate such a mass, as rotation depends on three factors:
angular distance traveled (or number of stations)
total moment of inertia (masses and distance the masses are from the center of the rotating plate)
10000 Kg22040 lbs
B- Maximum radial load: Represents forces perpendicular to the center of the rotating plate, usually exerted by actuators outside the indexing tables, aligned to the center of this plate
5300 Kg11680 lbs
C- Maximum vertical torque: Represents the imbalance of masses on the rotating plate, or the torsion of this rotating plate usually caused by actuators outside the indexing table that exert axial force on only one side of the rotating plate
20000 Nm14750 ft.lbs
D- Maximum horizontal torque: Represents external forces in the rotation direction of the indexing table, forcing the rotating plate to turn or brake.
8600 to 13800 Nm6340 to 10180 ft.lbs

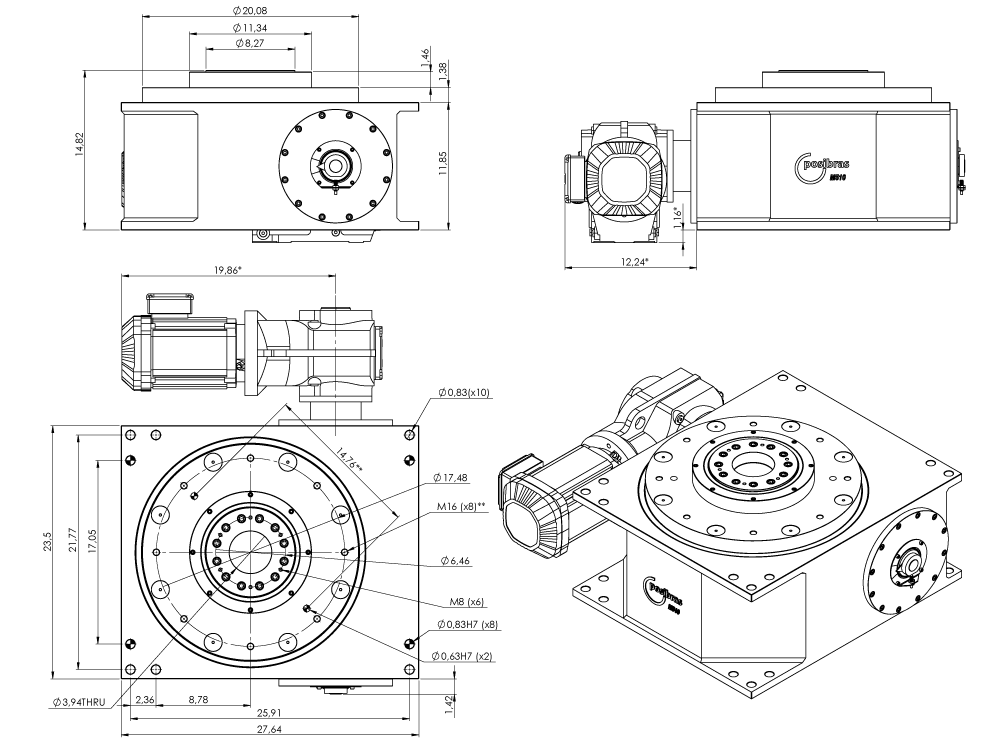

M510 main dimensions

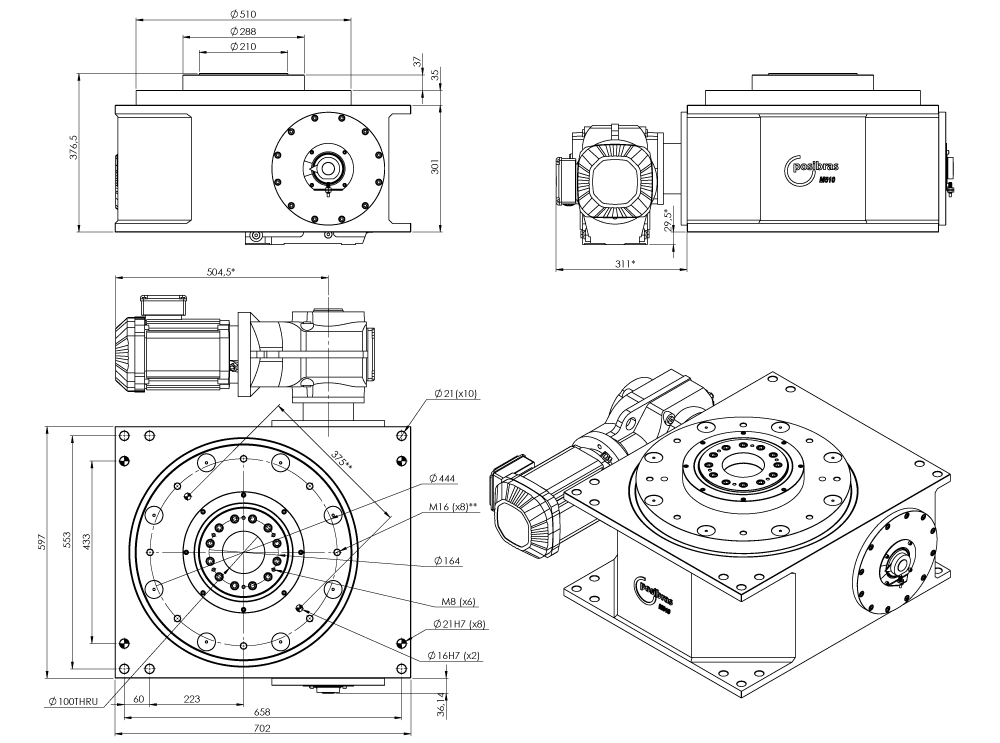

M510 main dimensions in millimetersinches
(*) – measurements can vary depending on the geramotor attached to the indexing table
M510 geramotor assembly position
Download the instruction manual – click on the icon below
For the use of other geramotor, or different gearmotor positioning or even special projects (example shaft with special length, using pulley instead
of motor, etc),please contact Posibras to generate this new solid.Posibras reserves the right to change product features at any time.
Please contact to confirm technical specifications.
