M210
The Rotary Indexing Table model M210 is suitable for light/medium-load applications.
Compact and lightweight, it can be easily installed with just 4 screws.
It can be installed horizontally, vertically or inverted (upside down).
Ideal for applications such as:

  • drilling machines
  • metal machining
  • presses
  • special machines

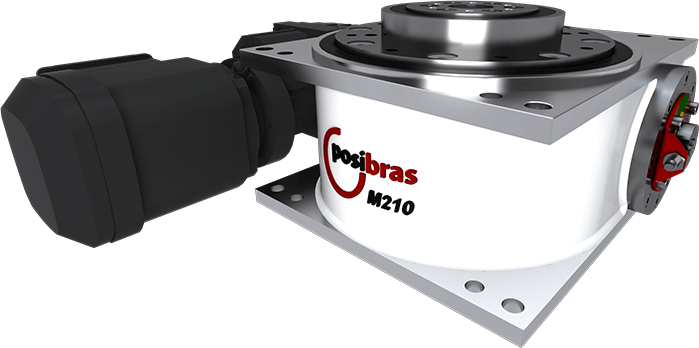

M210 Rotary index table

M210 technical features
Technical details Diameter of turntable: 210 mm8.26 in
Diameter of center opening: 35 mm (through hole)1.37 in (through hole)
Direction of rotation: Clockwise, anti-clockwise and also in reversing mode
Number of indexes: Indexed cam: 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 18, 20, 21, 22, 24, 26, 27, 28, 30, 32, 33, 36 (more option upon request), or
Continuous cam
Motor voltage: 220 V / 380 V / 440 V
Motor frequency: 50 Hz / 60 Hz
Motor power: 0.18 a 1.5 KW
Weight without gearmotor: approximately 30 Kg approximately 66 lbs
Weight with gearmotor: approximately 40 Kgapproximately 88 lbs (varies according to the selected gearmotor)
Indexing accuracy: ±0.015 mm at 50 mm center radius±0.00059 in at 50 in center radius
Repeatability accuracy: ±0.008 mm at 50 mm center radius±0.00032 in at 50 in center radius
Inductive sensor: PNP NA (from 10V to 36 V)

M210 permissible loads

To determine which model will be used in your project, in addition to the loads below, it is also necessary to know the moment of inertia of the set that will be moved, the time in seconds for positioning, and the number of stations (stops). Example: Moment of inertia 12Kg.m2lbs.ft2, speed 1.5 seconds, 12 stations.
Click on the Quote menu or contact us for help identifying this data.
Load Description Values

Axial load A- Maximum axial load (*):
Represents the total mass evenly distributed on the turntable (or total weight)(*) – the maximum total load refers to the forces on the turntable. This does not mean that the indexing table will be able to rotate this mass, as the rotation depends on three factors:

  • angular distance traveled (or number of stations)
  • angular speed / acceleration
  • moment of total inertia (masses and distance the masses are from the center of the turntable)
 3000 Kg6610 lbs
Radial load B- Maximum radial load:
Represents forces perpendicular to the center of the rotating plate, generally exerted by actuators outside the indexing table, aligned to the center of this plate		 500 Kg1100 lbs
Vertical torque C- Maximum vertical torque:
It represents the unbalance of masses on the turntable, or the twisting of this turntable, usually caused by actuators outside the indexing table that exert axial force on only one side of the turntable		 2000 Nm1475 ft.lbs
Horizontal torque D- Maximum horizontal torque:
Represents external forces in the direction of rotation of the index table, forcing the rotating plate to rotate or brake		 700 a 1400 Nm516 a 1032 ft.lbs

M210 main dimensions

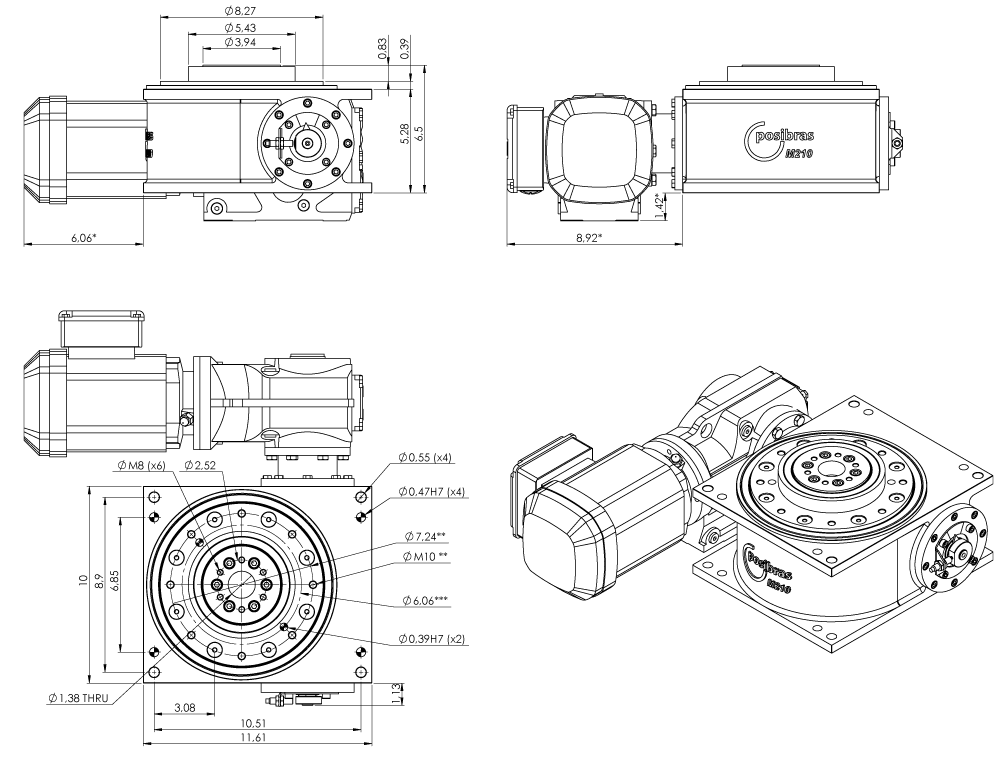

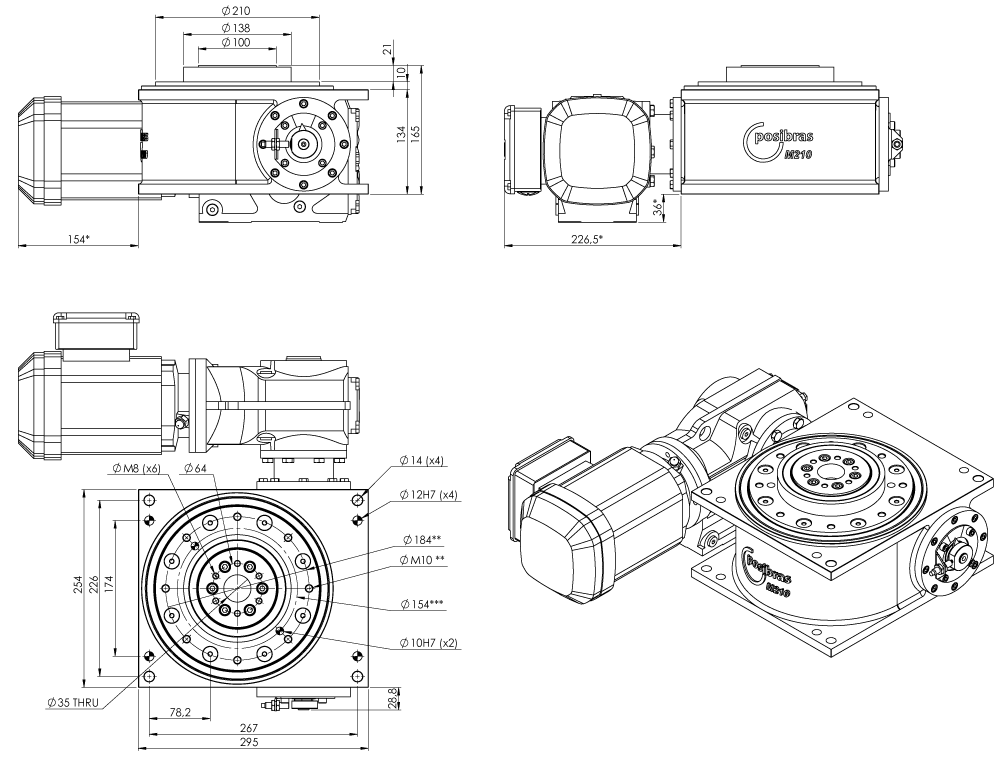

M210 main dimension in milimetersM210 main dimension in inches
M210 main dimensions
in millimetersinches

(*) – measurements can vary depending on the geramotor attached to the indexing table

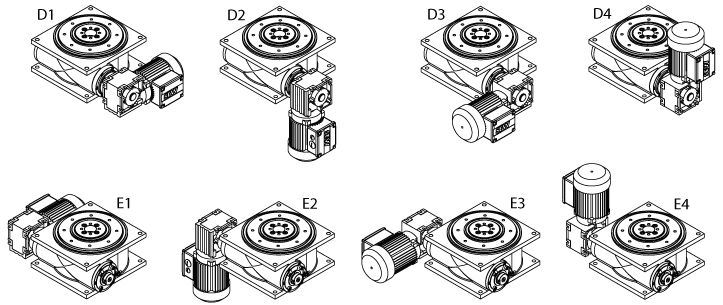

M210 geramotor assembly position

Gearmotor assembly position

Download the instruction manual – click on the icon below

Instructions manual

Download CAD 3D part

Assembly position Gearmotor model Click to download
D1_08 SEW_KA37DRE80M4 STEP Parasolid x_t Parasolid x_b VRML
D1_08 SEW_KA37DRS71S4 STEP Parasolid x_t Parasolid x_b VRML
D1_09 SEW_KA37DRS71S4 STEP Parasolid x_t Parasolid x_b VRML
D1_12 SEW_KA37DRS71S4 STEP Parasolid x_t Parasolid x_b VRML
D2_08 SEW_KA37DRS71S4 STEP Parasolid x_t Parasolid x_b VRML
D2_09 SEW_KA37DRS71S4 STEP Parasolid x_t Parasolid x_b VRML
D3_08 SEW_KA37DRS71S4 STEP Parasolid x_t Parasolid x_b VRML
E1_08 SEW_KA37DRS71S4 STEP Parasolid x_t Parasolid x_b VRML
E2_08 SEW_KA37DRS71S4 STEP Parasolid x_t Parasolid x_b VRML
E2_09 SEW_KA37DRS71S4 STEP Parasolid x_t Parasolid x_b VRML
E3_08 SEW_KA37DRS71S4 STEP Parasolid x_t Parasolid x_b VRML
D1_15 SEW_KA37 STEP Parasolid x_t Parasolid x_b VRML
D1_08 SEW_WA30DRS71S6 STEP Parasolid x_t Parasolid x_b VRML
D1_08 SEW_WA37DRS71S4 STEP Parasolid x_t Parasolid x_b VRML
D1 SEW_WA37DRS71S6 STEP Parasolid x_t Parasolid x_b VRML
D1_08 SEW_WA37DRS71S6 STEP Parasolid x_t Parasolid x_b VRML

For the use of other geramotor, or different gearmotor positioning
or even special projects (example shaft with special length, using pulley instead
of motor, etc),please contact Posibras to generate this new solid.Posibras reserves the right to change product features at any time.
Please contact to confirm technical specifications.
